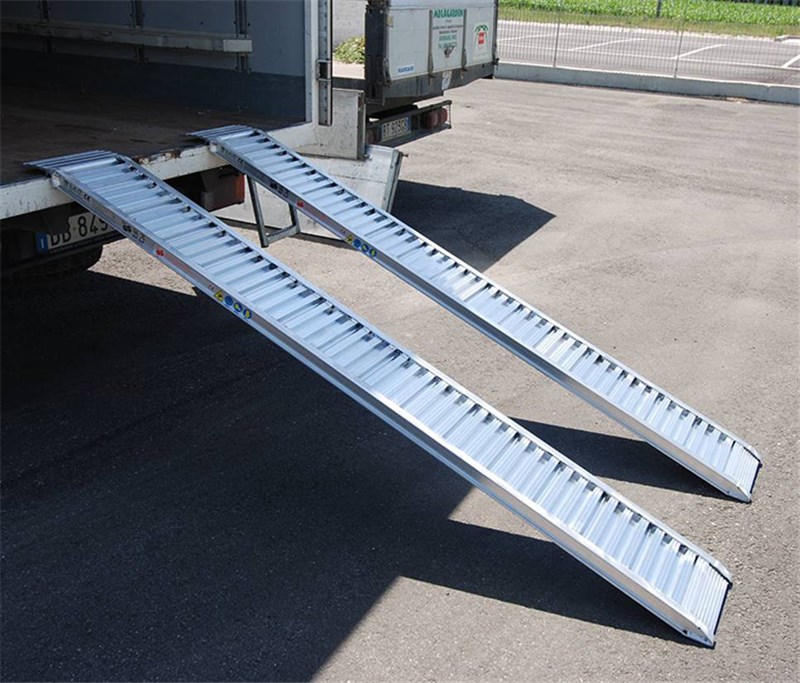

Straight 3m Aluminium Loading Ramps - 55.30.A, 1 pair (1,150kg)

Closed tread rigid aluminium loading ramps, suitable for loading ride-on lawn mowers / tractors and ATV's onto trailers or vans

• Tested to 2.1 x rated load
• DEKRA Certified with Certificate
• TUV Certified
• Manufactured from type 6082 grade aluminium

Which Ramp do I need?
1/. Measure the height of the truck or trailer's floor/bed to the ground in mm
2/. Multiply by 3.3, this will give you the ideal ramp length needed (ie. a bed height of 900mm – requires a 3m ramp)
3/. Select the ramp type based on length required and maximum load capacity to suit your application.

Depth: 55 mm
Length: 3000 mm
Width: 310 mm
Weight per ramp: 15.5 kg
Capacity per pair: 1150 kg
Design: Straight

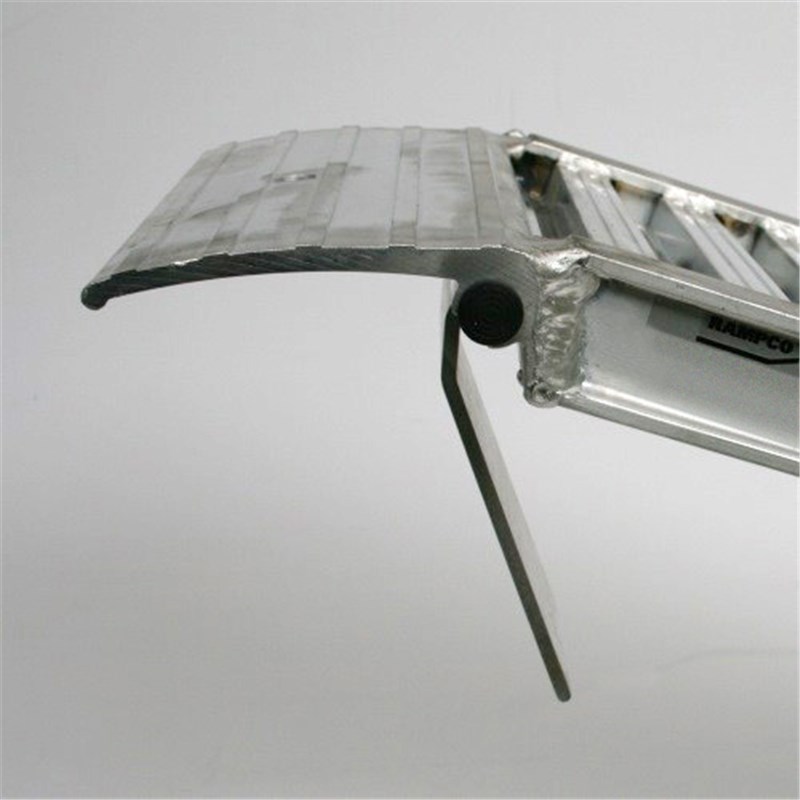

Connection type: A plate with safety tongue
Tested to 2.1 x rated load
DEKRA Certified with Certificate TUV Certified
Manufactured from type 6082 grade aluminium
Max. bed height: 1000 mm
